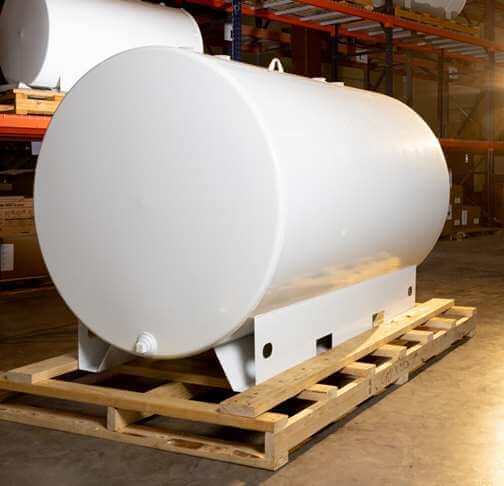

Newberry UL 142 Single Wall Skid Tank – 1000 Gallon Fuel Tank

Newberry cylindrical single wall skid tanks offer a durable 12 gauge steel design and are available in sizes that range from 150 gallons to 1,000 gallons.  High quality, UL 142 listed tanks are typically used for fuel storage or lubricant oil storage.

Key Features include:

• Meets UL-142 specification for above ground storage of flammable and combustible liquids.
• Commonly used for fuel storage and lubricant oil storage.
• Containment dikes available for secondary containment requirements.
• Comes standard with one coat of gray primer.
• Optional colors and coatings are available.

Single Wall Skid Tank Sizes & Dimensions:

• 150 Gallon:  30 W x 48 L x 30 H (inches); (12 gauge steel); 400 pounds
• 300 Gallon:  38 W x 60 L x 38 H (inches); (12 gauge steel); 550 pounds
• 550 Gallon:  48 W x 72 L x 48 H (inches); (12 gauge steel); 800 pounds
• 1000 Gallon: 45.5 W x 144 L x 45.5 H (inches); (10 gauge steel); 1,500 pounds
